Vascular access

Ports and needles

Access port catheters and port needles ensure easy vein access. This provides high comfort for clinicians and patients in hospitals as well as in home care treatment. For long-term venous access without compromising safety.

Medical Professional

This information is meant for medical professionals only. Please confirm that you are a medical professional before accessing the information.

Confirm Yes, I am a health care professional. Cancel No, I am not a health care professional.

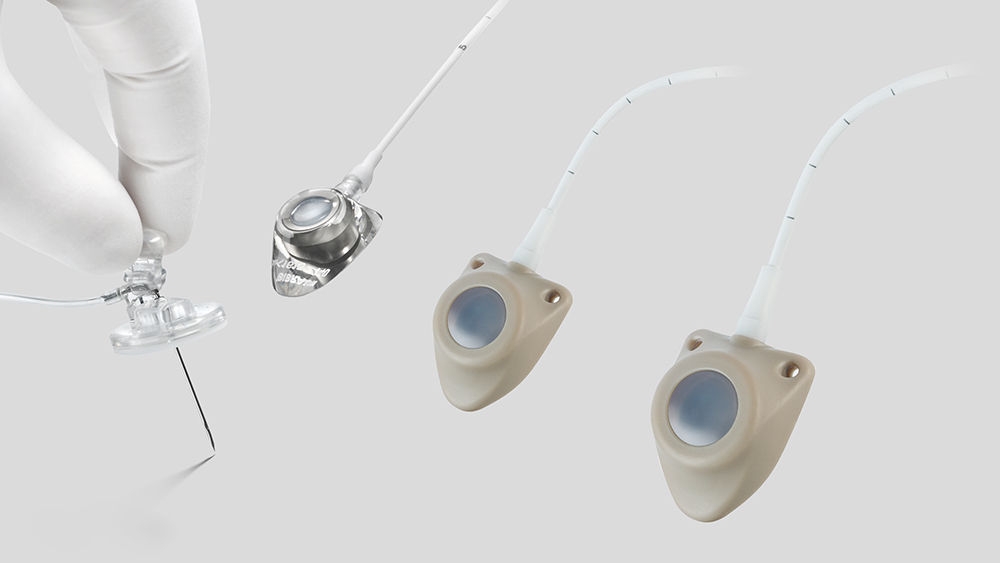

Access ports and port needles

Indications for use

The main treatments indicated for port access are the following:

  • Intra-venous chemotherapy
  • Intra-venous antibiotic therapy
  • Long term Total Parenteral Nutrition (TPN)
  • Loco regional chemotherapy
  • Drainage of malignant ascites (peritoneal and pleural effusions)
  • Long term pain treatment
  • High pressure injection of contrast media when CT scan is performed
  • Blood transfusion and blood sampling

Implantation of the vascular access port

The implantation site is chosen according to the indication, clinical condition of the patient, the patient’s lifestyle and the treatment to be administered. The operation is simple and takes only around 30 minutes under local anesthesia (general anesthesia for children). The vascular access port may be placed in the upper or lower thoracic position or even in a brachial position with a dedicated brachial port.



The vein is punctured to introduce the catheter and the skin is incised to make a pocket to place the vascular access port under the skin. The port pocket is made as small as possible (about 2.5 cm). After implantation a dressing is placed to protect the incision. If treatment is required right after the port placement, it is possible for the physician to place immediately a needle into the port to administer the treatment.



If the treatment requires a few days infusion, a special needle will be put in place and covered with a sterile dressing. This needle does not need to be changed every day, but the maximum duration of needle placement should not exceed 7 days. When the patient is not receiving regular treatment through the access port, it is recommended to be flushed every 4 weeks. This is to make sure that the catheter and port are still functional. In most cases, there are no complications.



The port is designed to increase patient comfort. However local anaesthetic cream can be applied over the injection site to numb the area. The access, use and maintenance of the vascular access port must be done according to strict aseptic rules and following approved local protocols.

Potential access routes

There are many potential access routes for a central venous vascular access port catheter. The most used are the internal or external jugular veins, the subclavian vein, the cephalic vein and the axillary vein.

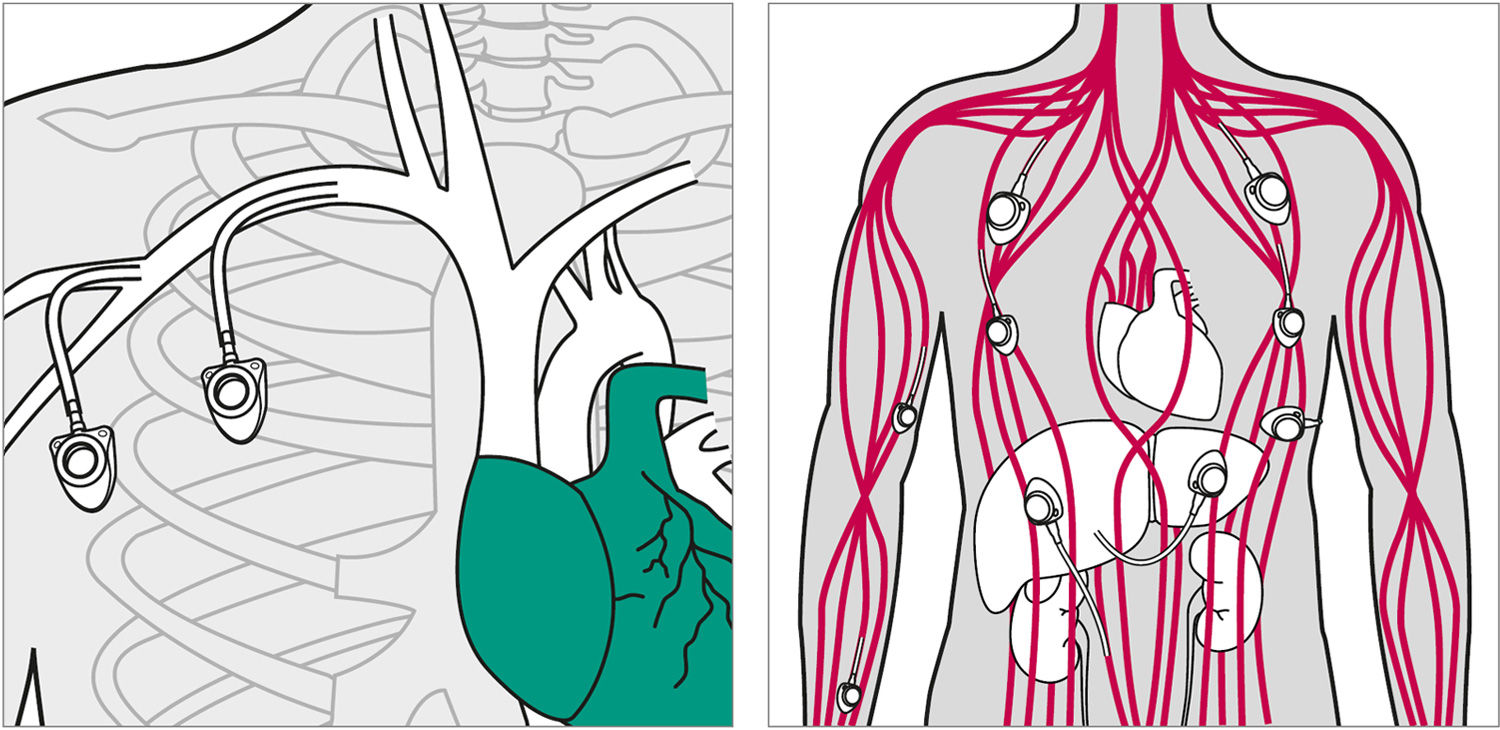

Illustrations of the potential access routes for a central venous vascular port catheter

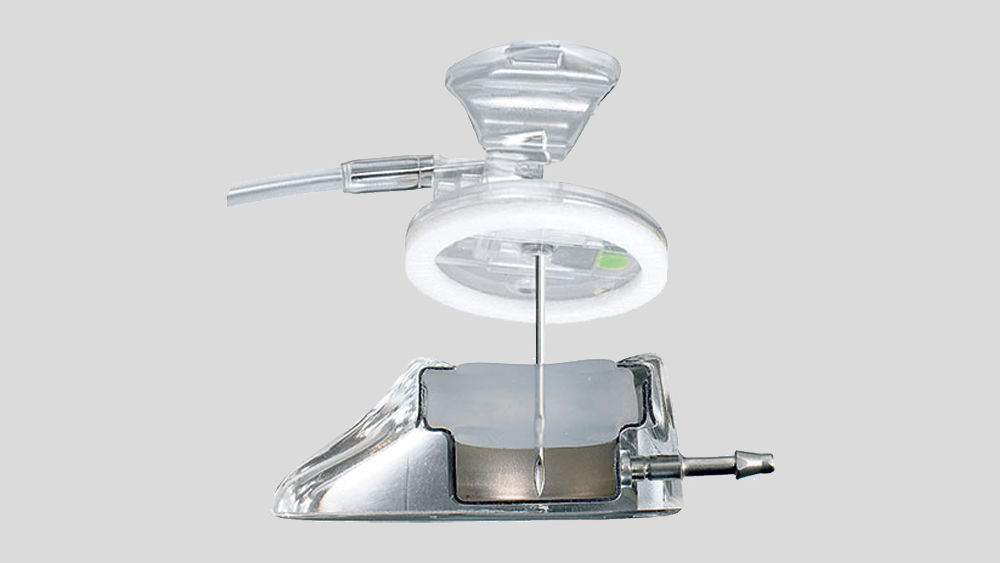

Product picture of the port usage and maintenance

Usage

It is of primary importance that the nursing staff takes care for hygiene precautions and follows the port usage process according to local protocols.



It is a complex process and consists of 9 individual steps to follow:

  1. Preparation of the medical staff (hygiene measures)
  2. Preparation of the access site (inspection, disinfection and preparing needles and dressing component)
  3. Preparation of the port needle (rinsing and heparinization)
  4. Puncturing the port (careful needle insertion)
  5. Confirm the patency (aspiration of blood followed by injection of saline)
  6. Needle fixation (fixation with transparent / non-transparent dressing)
  7. Start the infusion (careful observation is required)
  8. End of treatment (rinsing of port with saline)
  9. Removal of the needle (end of process)

Hygiene precautions

Rigorous aseptic rules must be followed, according to the given protocol of the hospital based on national and/or international guidelines to prevent infection of the access port. To avoid any contamination of the injection site, it is important to ensure that the patient’s head remains turned away from the site during the procedure and refection of the dressing.
